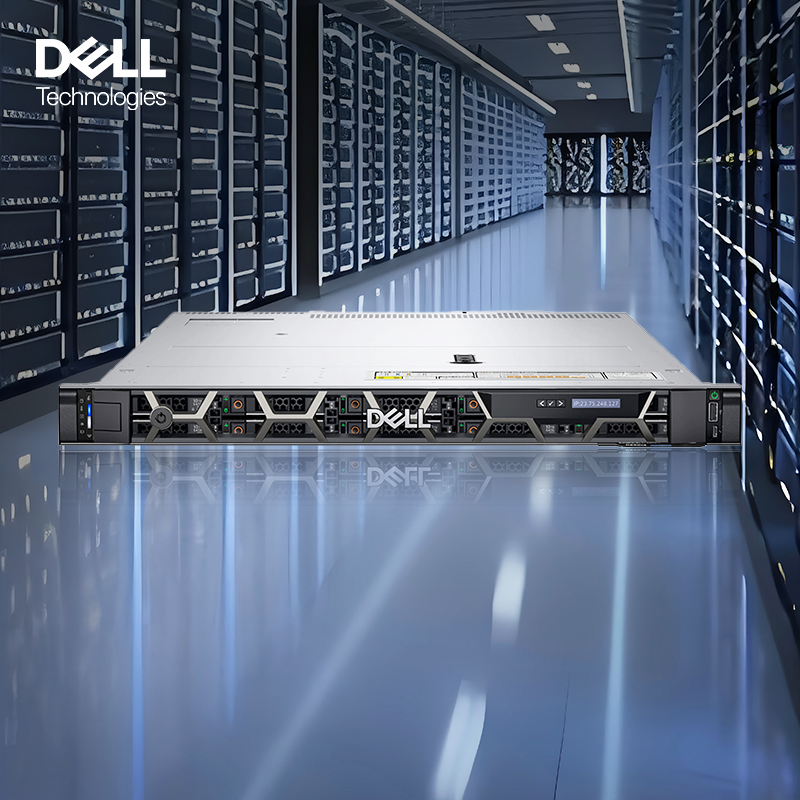

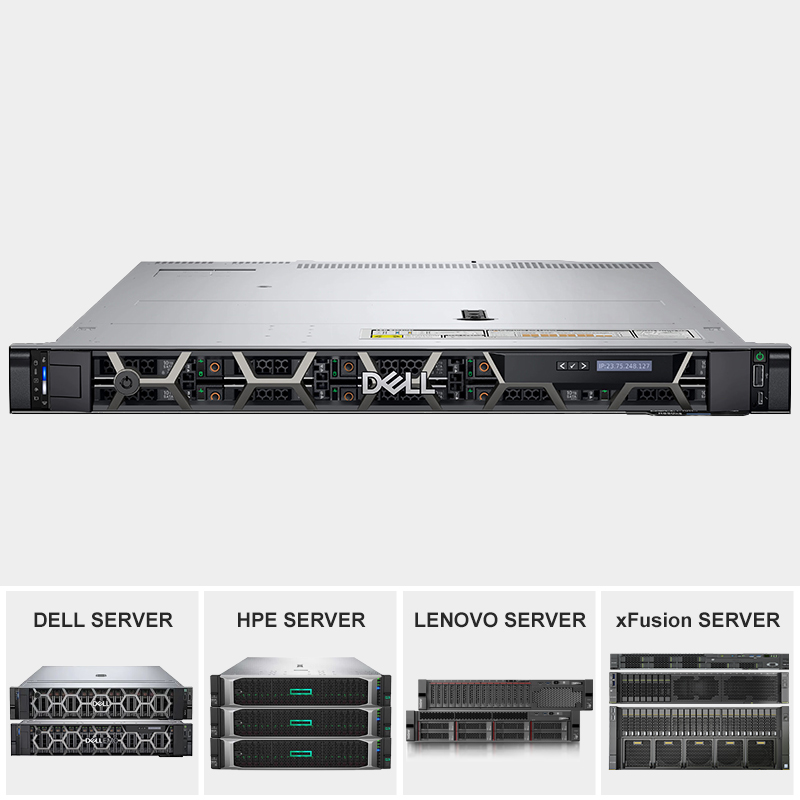

The PowerEdge R660 Rack Server is a high-performance solution engineered for optimal functionality in data center environments. Equipped with powerful Intel Xeon processors, it delivers robust computing capabilities suitable for diverse workloads, from critical business applications to virtualization.
The R660's space-efficient form factor facilitates seamless integration into rack configurations without compromising performance. With advanced management features, this server ensures efficient control and monitoring through Dell's integrated tools. Renowned for its reliability and scalability, the PowerEdge R660 is an ideal choice for businesses seeking a powerful and space-saving solution for their evolving IT infrastructure needs.
| Server Model | Dell R660 |
| Rack height (U) | 1 U rack server |
| Processors | Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores and optional Intel® QuickAssist Technology |
| Memory | 32 DDR5 DIMM slots, supports up to RDIMM 8TB and speeds up to 4800 MT/S. Only registered ECC DDR5 DIMMs supported. |
| Storage controllers |
• Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBAs (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays |
Front bays: • Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB • Up to 14 x E3.S (Gen5 x NVMe) max 179.2 TB • Up to 16 x E3.S, (Gen5 x NVMe) max 204.8 TB Rear bays: • Up to 2 x 2.5-inch, SAS/SATA/NVMe, max 30.72 TB • Up to 2 x E3.S (Gen5 x NVMe), max 25.6 TB |
| Embedded Management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Embedded NIC | 2 x 1 GbE LOM card (optional) |
| Network options |
1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
| GPU Options | Up to 2 x 75 W SW |
