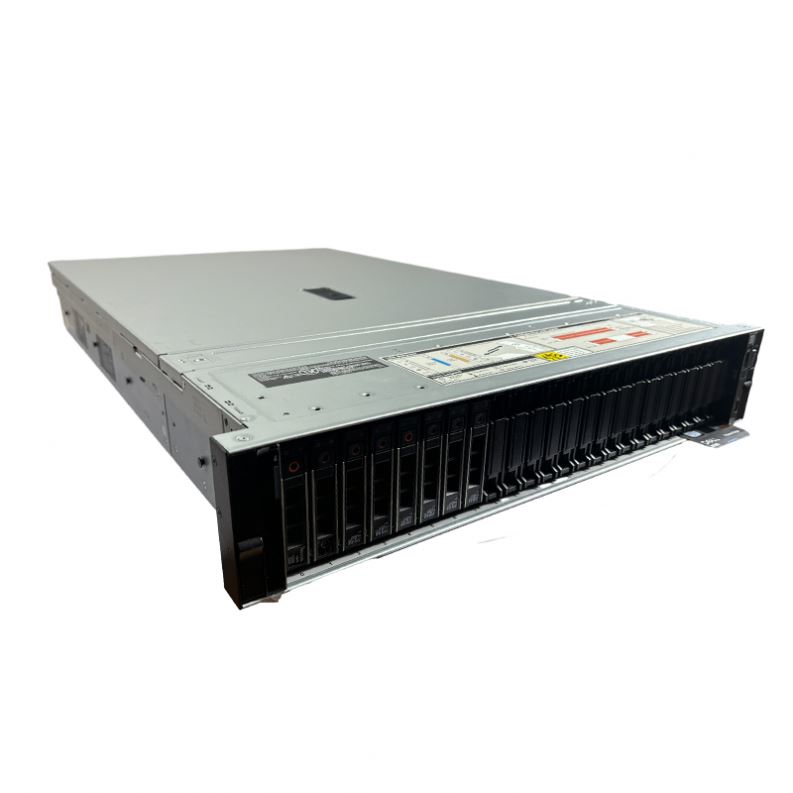

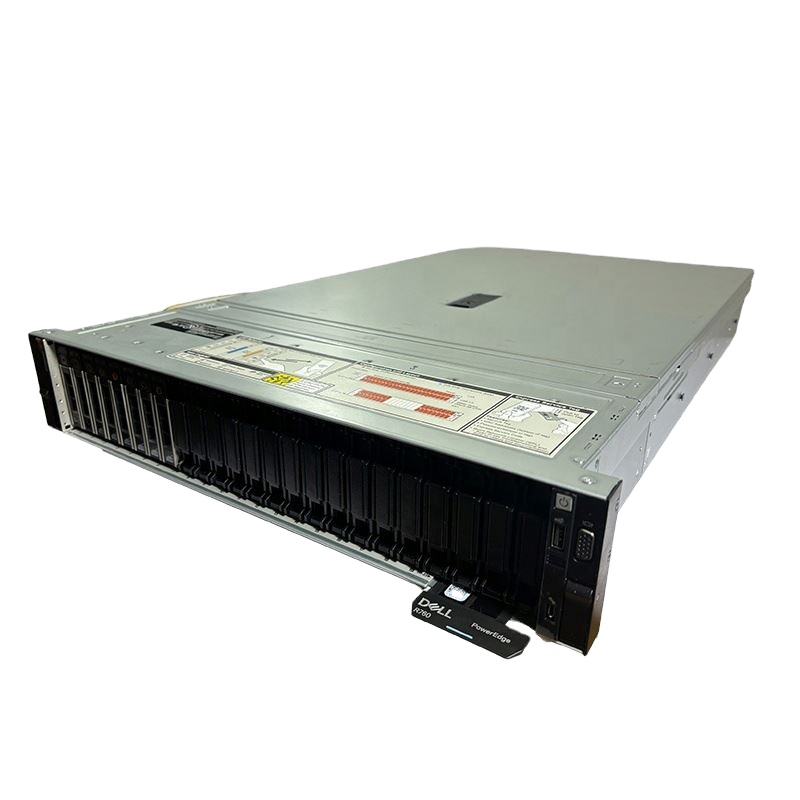

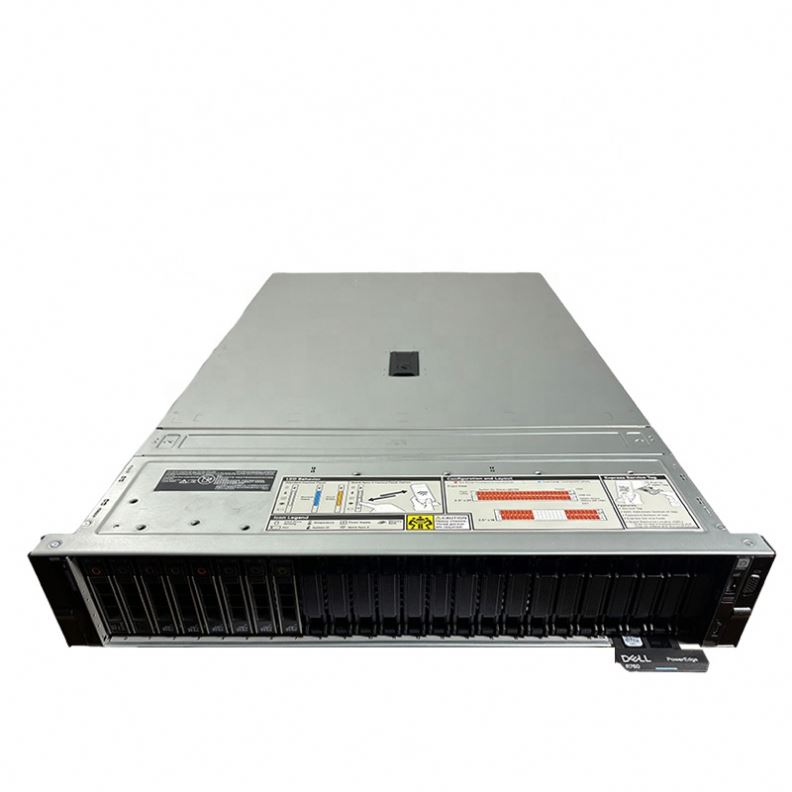

| Server Model | Dell Poweredge R760 Server |
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology |
| Memory | 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s; Supports registered ECC DDR5 DIMMs only |
| Storage controllers | Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i; Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB; External HBA (non-RAID): HBA355e; Software RAID: S160 |
| Drive Bays | Front bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB; Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB; Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB; Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB. Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB; Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power supplies | 2800 W Titanium, 2400 W Platinum, 1800W Titanium, 1400 W Platinum, 1100 W Titanium, 1100 W LVDC, 800 W Platinum, 700 W Titanium (All hot swap redundant) |
| Cooling Options | Air cooling; Optional Direct Liquid Cooling (DLC) |
| Fans | Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans; Up to 6 hot plug fans |
| Dimensions | Height – 86.8 mm, Width – 482 mm, Depth – 772.13 mm (with bezel) / 758.29 mm (without bezel) |
| Security | Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secure Erase, Secured Component Verification, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS/CC-TCG/China NationZ |
Provides performance and versatility as needed to address your most demanding applications. The new Dell PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
