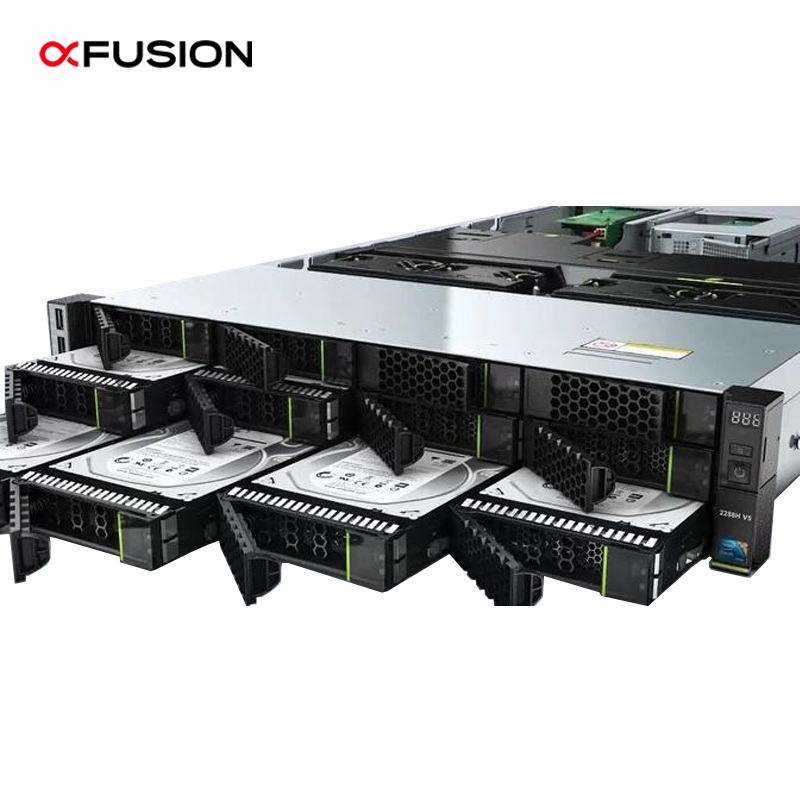

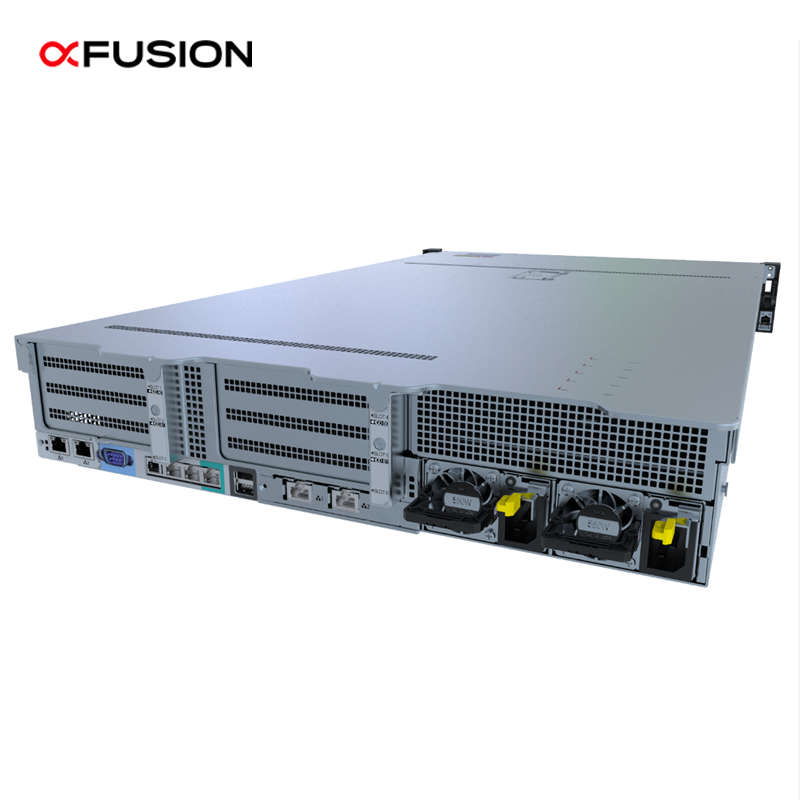

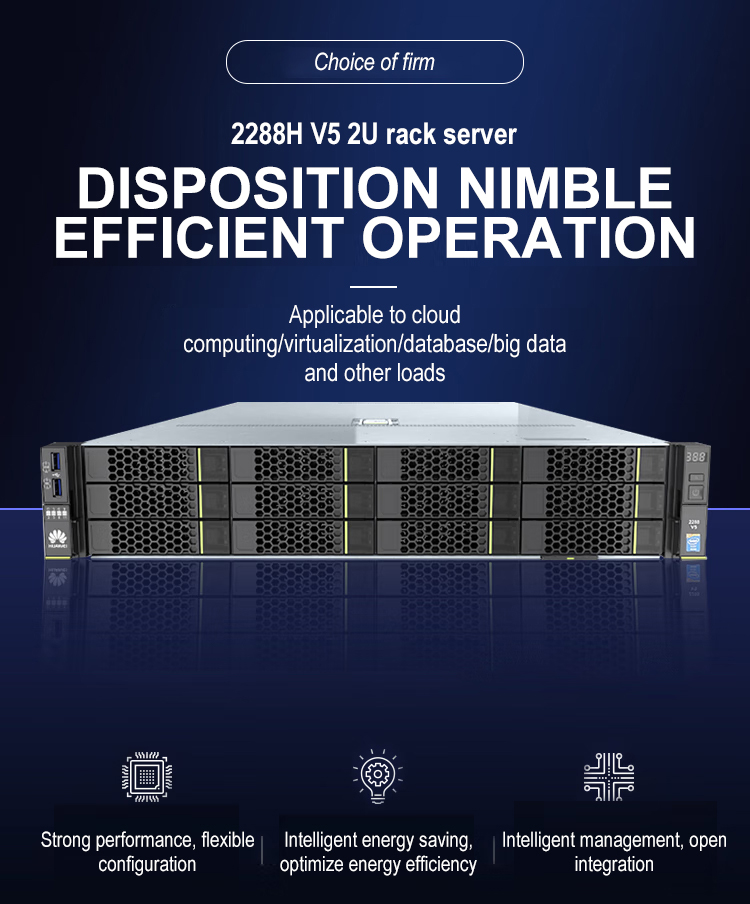

FusionServer 2288H V5 2U rack server. The FusionServer 2288H V5 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V5 can be configured with 2-socket Intel® Xeon® Scalable processors, 24 ports of DDR4 memory, 10 PCIe expansion slots, and supports large-capacity local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
| Server Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors | 1/2 x 1st/2nd Gen Intel® Xeon® Scalable processors, up to 205W |
| Local storage | Supports 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD; 12/16/20 x 3.5-inch SAS/SATA; 4/8/12/24/28 NVMe SSD; Dual M.2 SSDs. |
| RAID support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; supports cache supercapacitor protection |
| Network | On-board NIC (2x10GE, 2xGE), Flexible card options (GE/10GE/25GE/56G FDR IB) |
| PCIe extensions | Up to 10 PCIe 3.0 expansion slots |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Dimensions | 3.5-inch chassis: 86.1mm x 447mm x 748mm; 2.5-inch chassis: 86.1mm x 447mm x 708mm |
| Power Supply | 2 hot-swappable PSUs (1+1 redundancy), multiple options (550W/900W/1500W AC/HVDC/DC) |

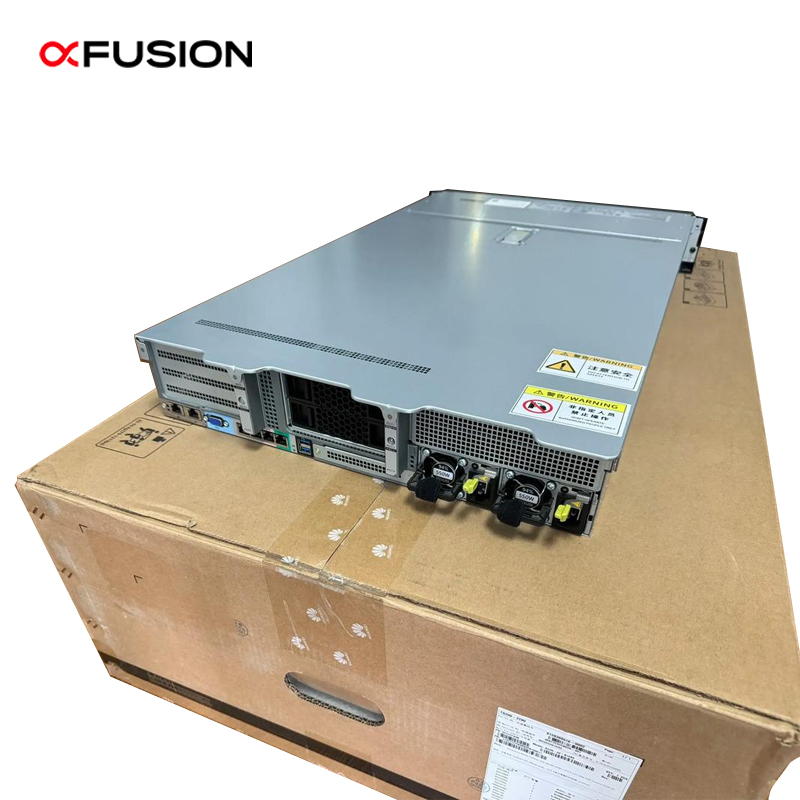

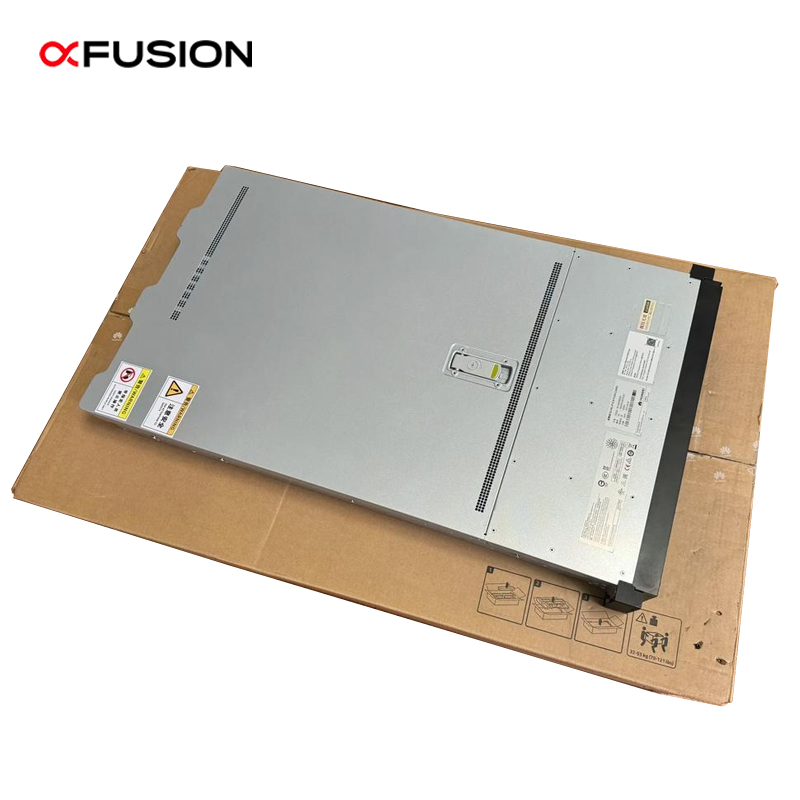

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
