New xFusion 2288H V6 Hyperconverged Infrastructure System 20*2.5 Inch Drive Xeon 2*4310 2*64GB 9540-8i 1500W 2U Rack Server

Product Description

Product Display
FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

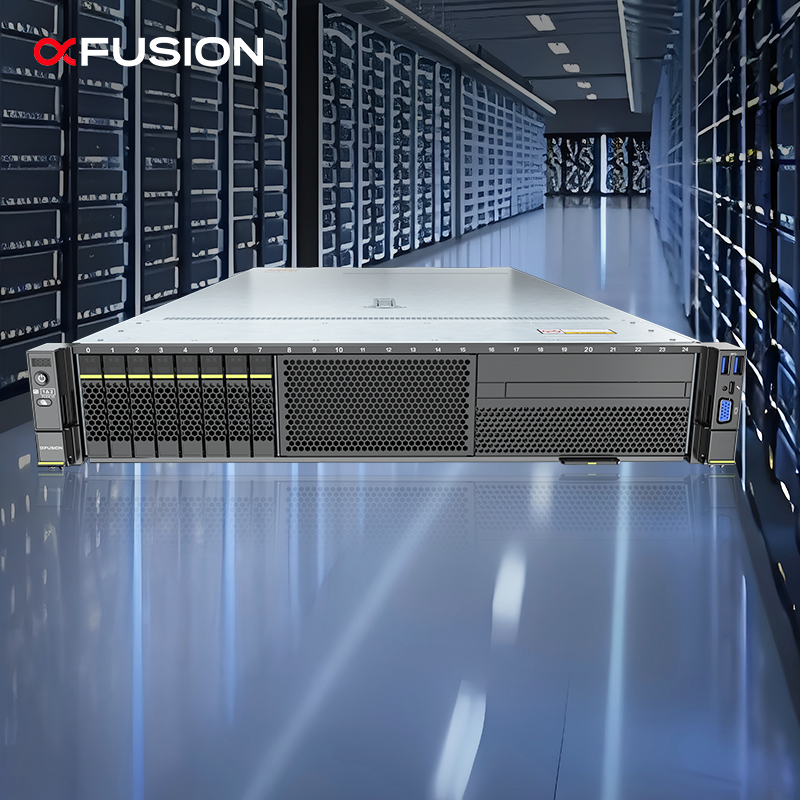

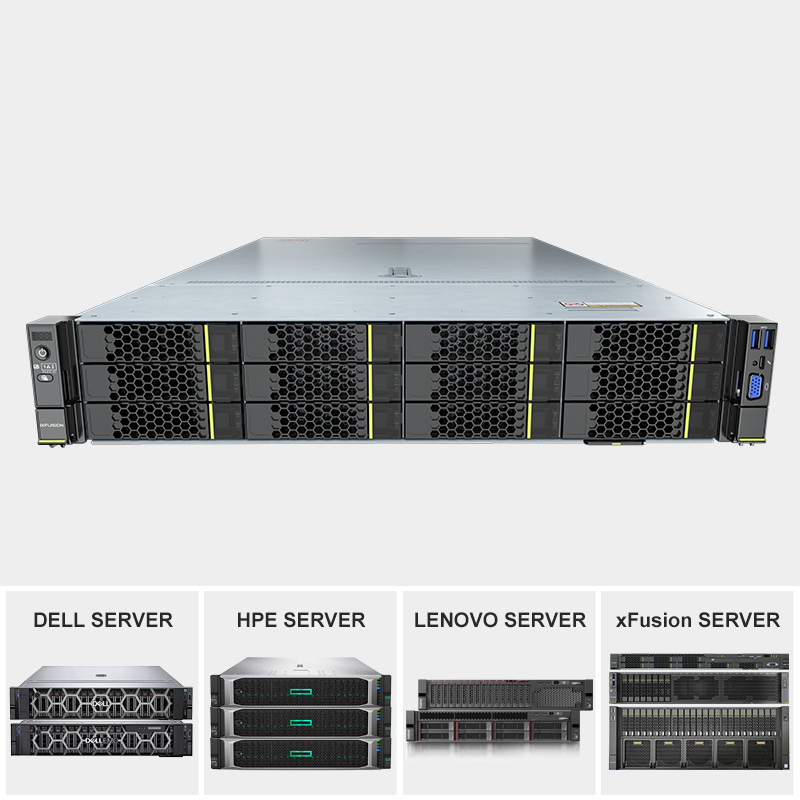

FusionServer 2288H V6 Display

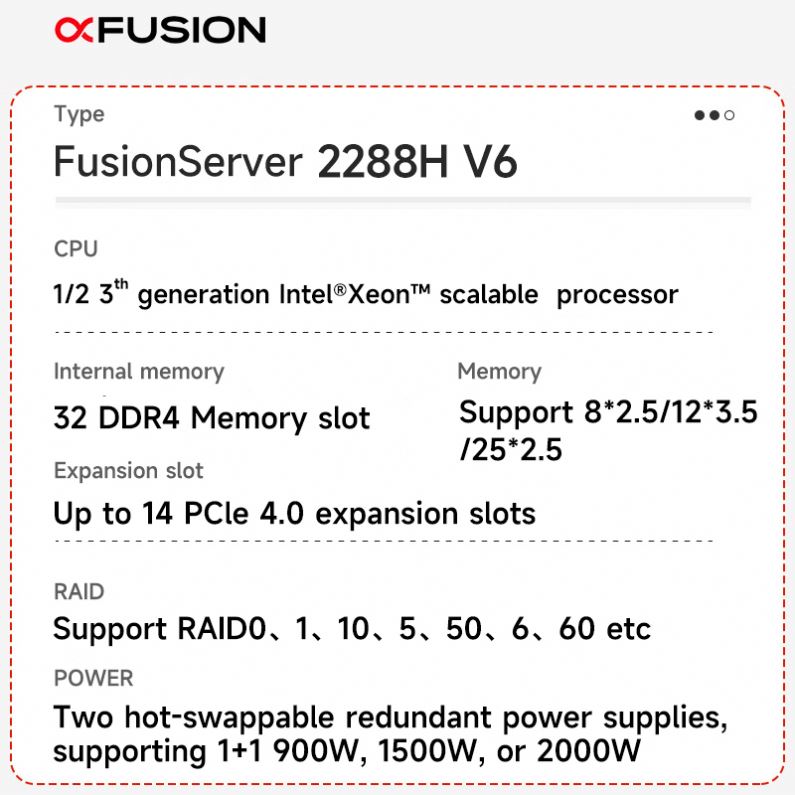

Product Parameters
Server ModelFusionServer 2288H V6
Form Factor2U rack server
ProcessorsOne or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Local StorageSupports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports dual M.2 SSDs

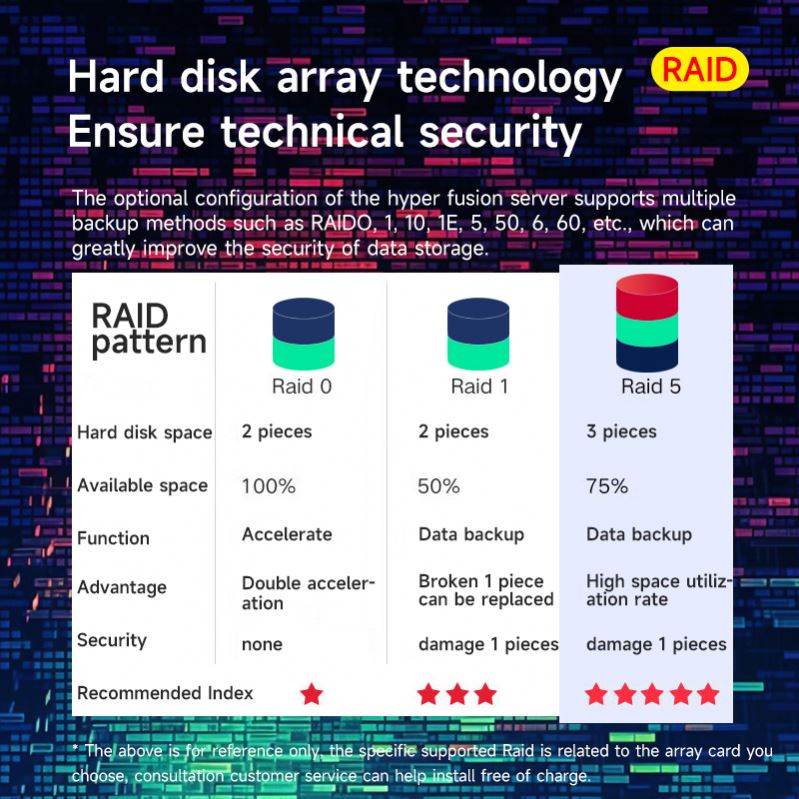

RAID SupportSupports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.
NetworkProvides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively.
PCIe ExpansionProvides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards.
Chip SetIntel C621A
ManagementiBMC chip integrates one dedicated GE management port. Supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM.
Operating SystemsMicrosoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc.
SecurityPower-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.
Power SupplyTwo hot-swappable PSUs in 1+1 redundancy mode. Options: 900W, 1200W, 1500W, 2000W, 3000W (Platinum/Titanium).

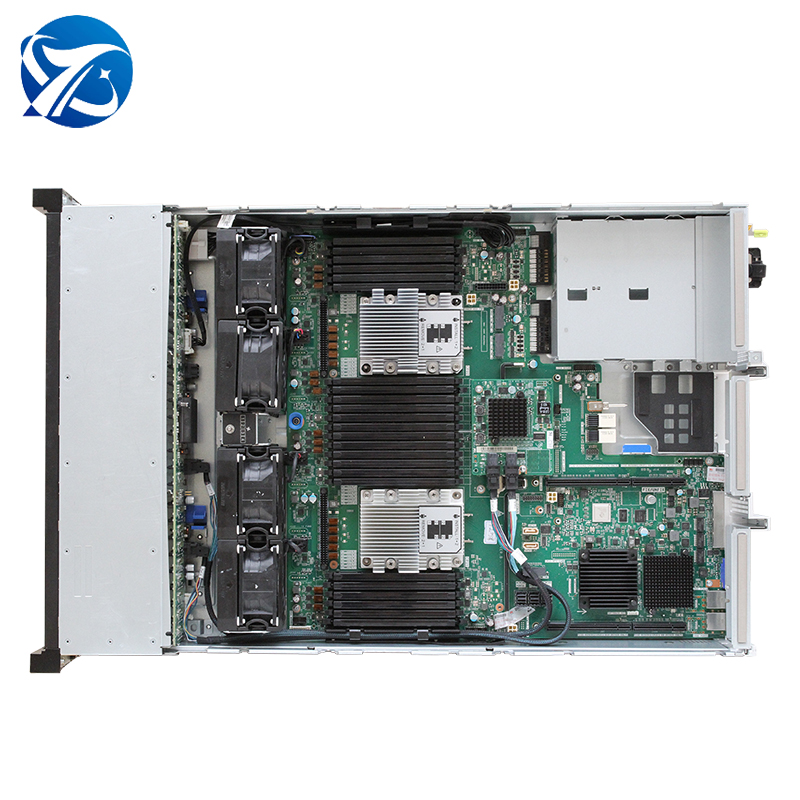

Internal & Component View
Server Component 1
Server Component 2
Professional Infrastructure Services
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. We provide computing servers, network storage, network switches, and all critical accessories including CPUs, RAM, and hard drives.
Infrastructure 1
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. We use reinforced materials to protect high-value server components during international transit.
Packing Process
Shipping Warehouse
Frequently Asked Questions
Q1 When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone, and we will give priority to your inquiry.
Q2 Why should I choose your products?
We provide a 3-year replacement warranty on complete machines. All components like memory are original brand chips, strictly tested before delivery. Our supply chain is robust, ensuring reliable after-sales support.
Q3 What is the Minimum Order Quantity (MOQ)?
Different products have different MOQs. Please share your specific requirements, and we will do our best to accommodate you. Small orders are also welcome.
Q4 How do you justify your pricing compared to local markets?
We specialize in this field for many years, prioritizing quality for long-term business. While external appearances may look similar, internal quality and original component sourcing create the value gap.
Q5 What payment methods do you accept?
We accept a variety of secure payment methods, including bank transfers (T/T), credit cards, and other standard international trade payment platforms to ensure a safe transaction.
Q6 Do you support customized server configurations?
Yes, we provide flexible configuration services. You can specify the CPU, RAM, storage, and network interface requirements to match your specific application workloads.
