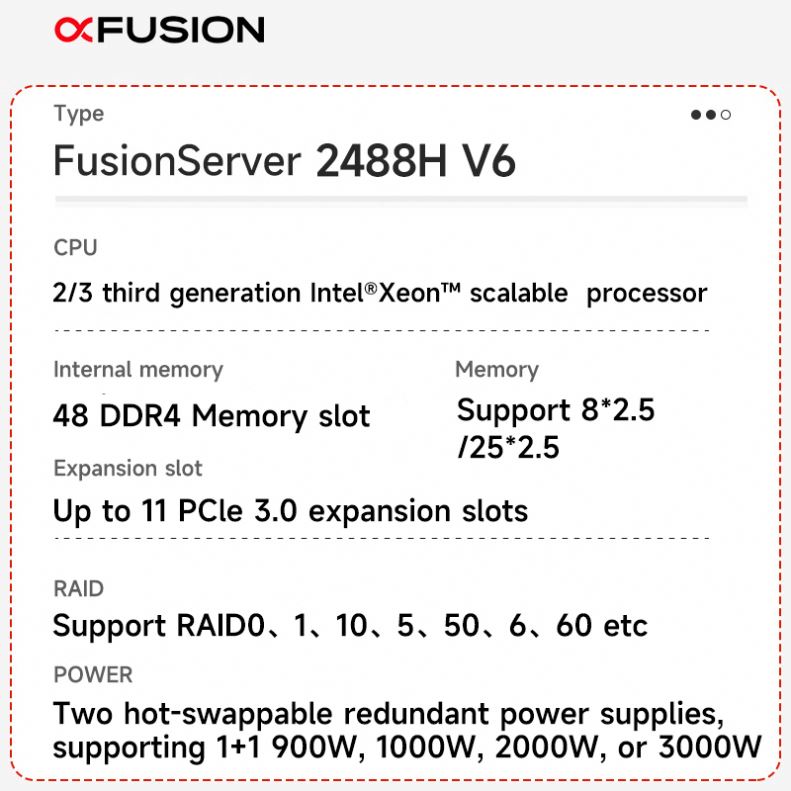

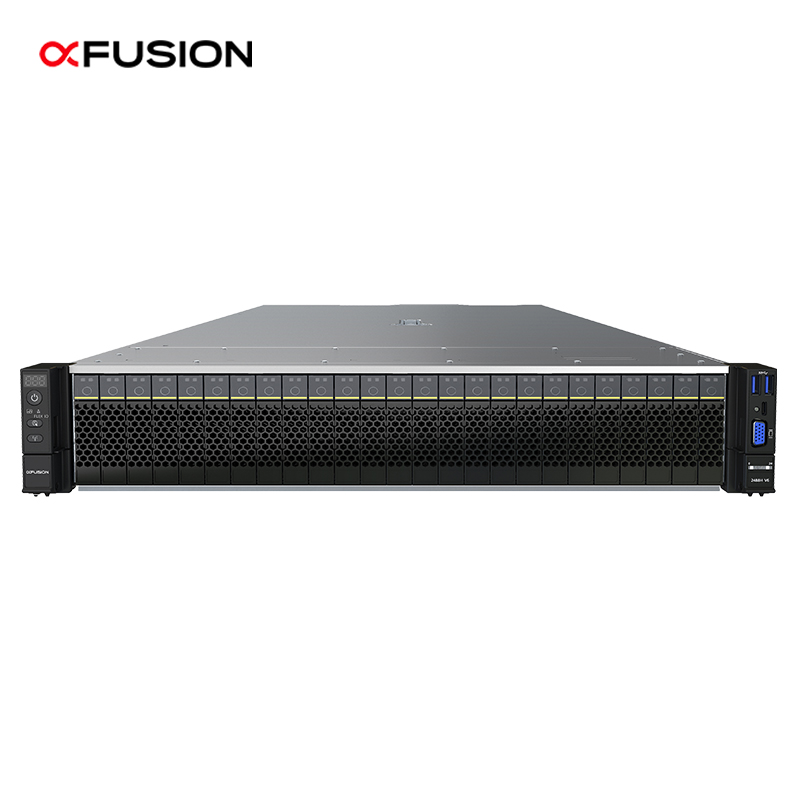

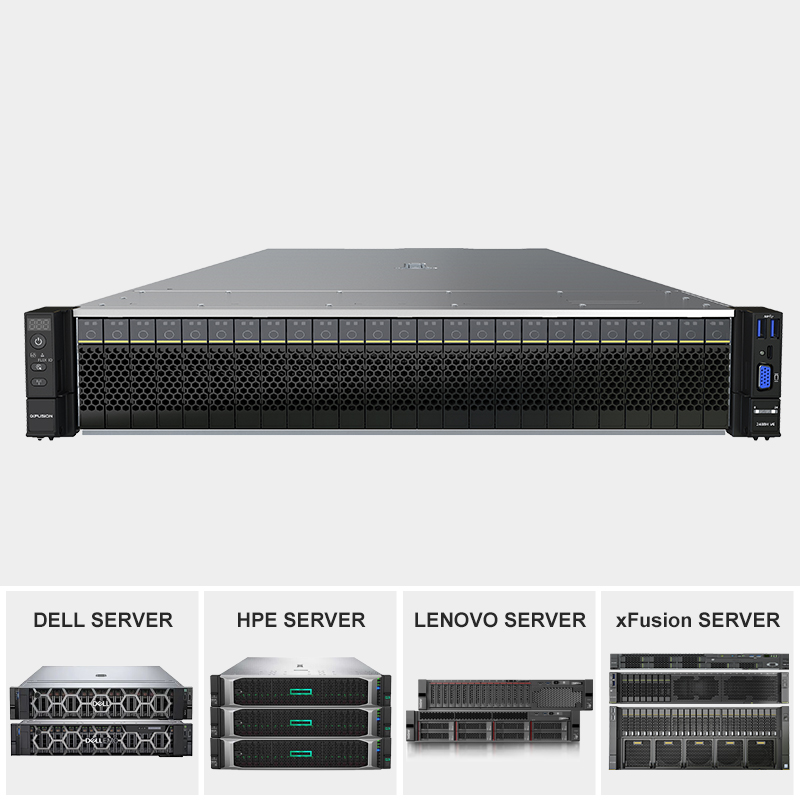

| Server Model | 2488H V6 |
| Form Factor | 2U rack server |
| Processors | 2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W |
| Local storage |

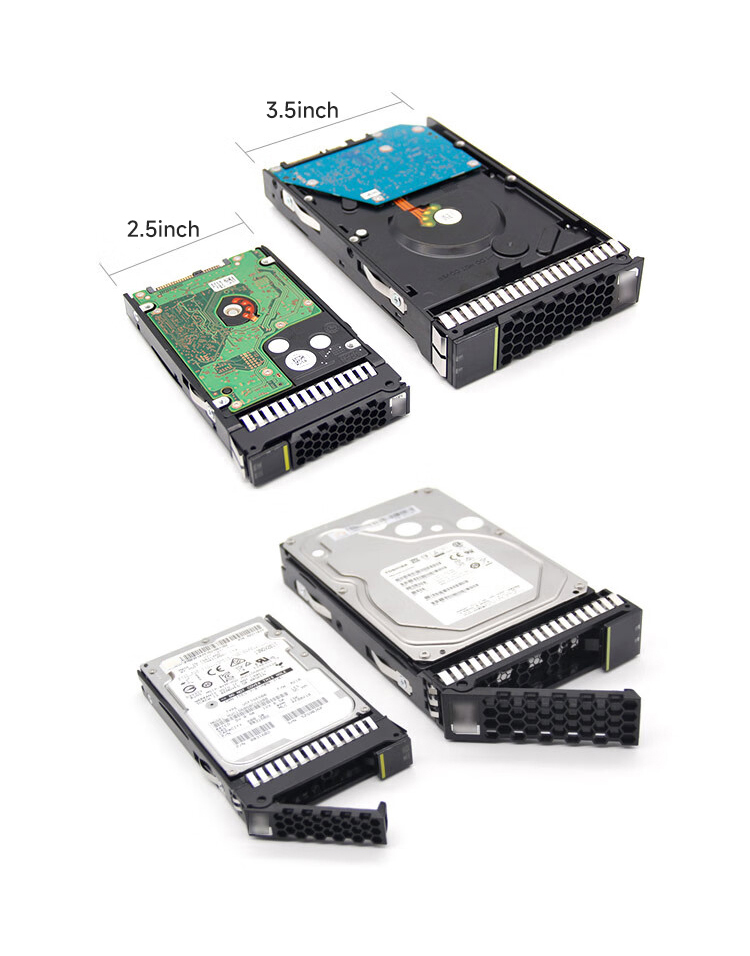

Supports hot-pluggable drives with the following configuration options: • 8 x 2.5'' front SAS/SATA drives • 24 x 2.5'' front SAS/SATA drives • 25 x 2.5'' front SAS/SATA drives • 4 x 2.5'' front SAS/SATA drives and 8 x 2.5'' NVMe SSDs • 4 x 2.5'' front SAS/SATA drives and 16 x 2.5'' NVMe SSDs • 24 x 2.5'' front NVMe SSDs1 Flash storage: 2 M.2 SSDs |

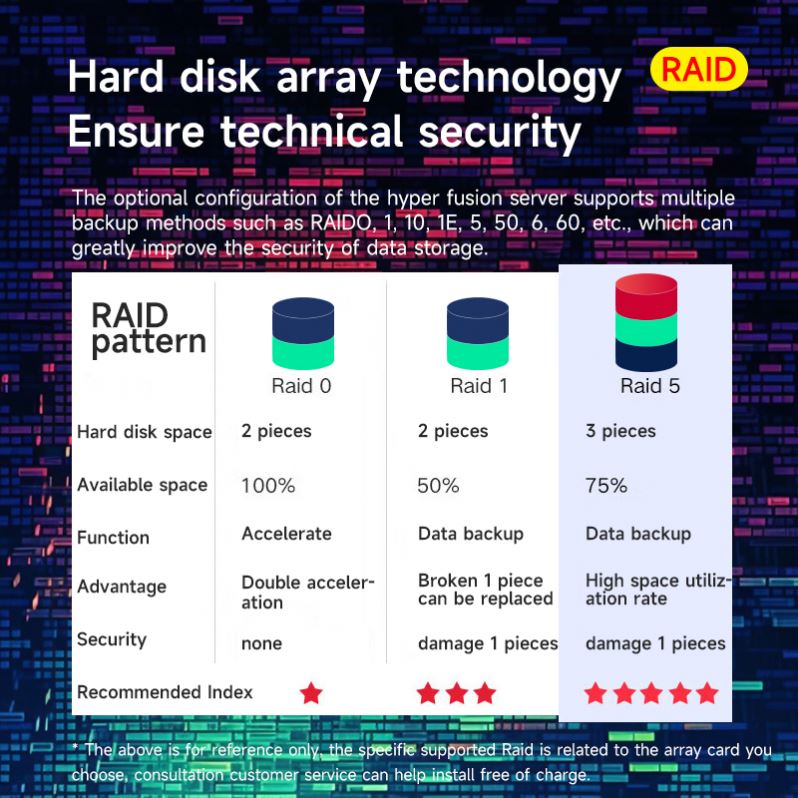

| RAID support | RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| LOM network port |
1 x OCP 3.0 NIC (optional): 2 x GE/10GE/25GE/100GE ports, supporting hot swap, NC-SI, WOL, and PXE 1 Wi-Fi module (optional): allowing mobile terminals to connect to the iBMC in wireless mode |
| PCIe extensions | Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC |
| Management |
iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management. • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management |
| Operating system (OS) | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi. |
| Security | Power-on password, administrator password, TCM/TPM 2.0, security front panel, and out-of-box intrusion alarm, etc |
| Heterogeneous accelerator card | 2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards. For details, please consult support. |
| Fan Modules | 6 hot-swappable fan modules in N+1 redundancy mode |
| Height X Width X Depth | Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply Units |
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W HVDC PSUs (input: 260 V to 400 V AC) • 2200 W DC PSUs (input: -38.4 V to -72 V DC) • 1200 W DC PSUs (input: -38.4 V to -72 V DC) |
